NEOM BPT & Transmission pipe line

The project focused on preparing comprehensive shop drawings and as-built documentation for the water transmission pipeline system between the MAGNA Brake Pressure Tank (BPT) and MAGNA Reservoir, located in NEOM City, KSA. The technical scope included:

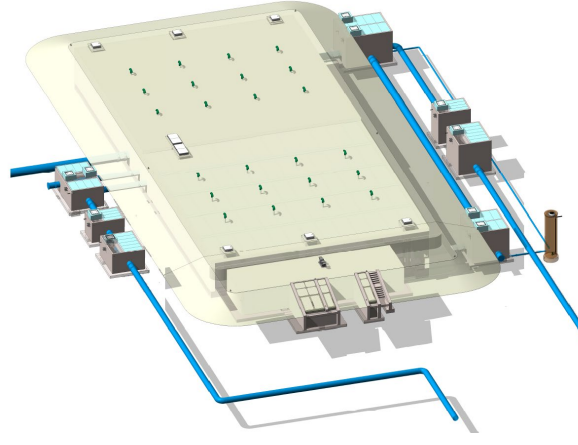

1. MAGNA Brake Pressure Tank (BPT):

   • A critical infrastructure component with a storage capacity of 7000 m³.
   • Integrated with a control building housing essential operational and monitoring equipment.

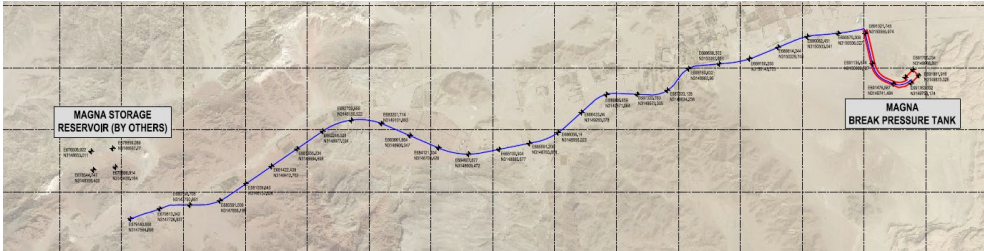

2. Gravity Steel Water Transmission Pipeline:

   • A 16-kilometer pipeline designed for efficient gravity-driven water transport.
   • Constructed using DN 800 steel pipes, ensuring durability and capacity to meet system demands.

This project required detailed coordination to ensure all drawings and documentation accurately reflected the engineering and construction aspects, enabling seamless execution and future maintenance.

Date: February 2023

Scope of Services:

• Shop drawings
• As Built Drawings

Types of Activities:

• Architecture
• Structure
• Mechanical
• Electrical
• Communication
• Leak detection system, SCADA &Instrumentation
• Access Road & site utilities
• Hydraulic
